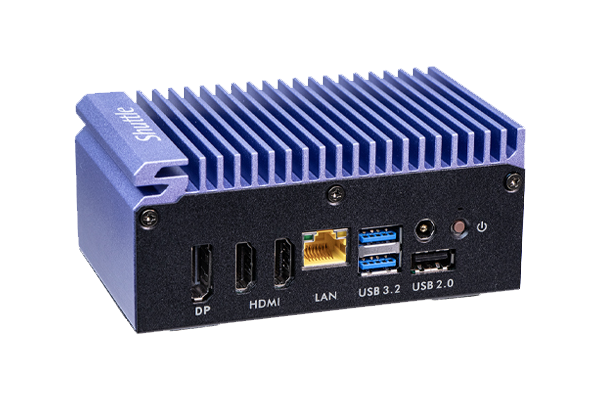

SPCEL12/13
PROCESSOR: SPCEL12 Intel Celeron® J6412 2.60 GHz SPCEL13 Intel Atom® x6413E AUDIO: 2, Mic-in & Line-out MEMORY: 260 pin SO-DIMM, DDR4 3200MHz Support up to 32 GB DIMENSIONS: 120（L） x 75（W） x 51（H） mm POWER: 12~20V DC in 19V 65W external adapter BACK PANEL: RJ-45*1/Micro SD Card*1/SIM Card*1 STORAGE INTERFACE: SSD M.2 M-key 2280/ 2242 With M.2 E-Key WLAN sku, only 2242 can support

Product Specification

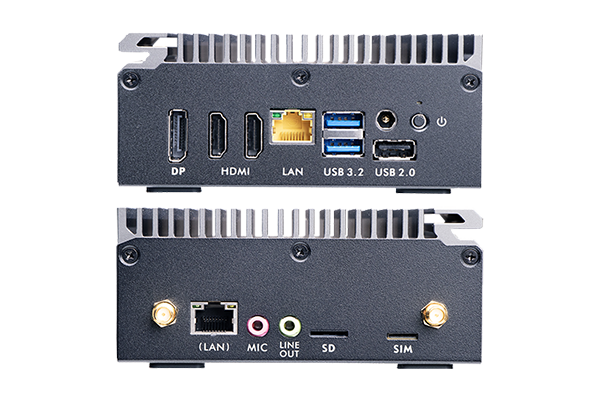

PROCESSOR: SPCEL12 Intel Celeron® J6412 2.60 GHz SPCEL13 Intel Atom® x6413E AUDIO: 2, Mic-in & Line-out MEMORY: 260 pin SO-DIMM, DDR4 3200MHz Support up to 32 GB DIMENSIONS: 120（L） x 75（W） x 51（H） mm POWER: 12~20V DC in 19V 65W external adapter VIDEO OUTPUT: HDMI 2.0b（4096x2160@60Hz）*2 DP 1.4*1 ETHERNET: Intel I226-v (PCIe) LAN controller Support Wake-On-LAN function STORAGE INTERFACE: SSD M.2 M-key 2280/ 2242 With M.2 E-Key WLAN sku, only 2242 can support FRONT PANEL: USB 3.2 Gen2（Type A）*2 USB 2.0 Type A *1 RJ-45（Intel 2.5G Lan）*1 BACK PANEL: RJ-45*1/Micro SD Card*1/SIM Card*1 ACCESSORIES: VESA Mount 100 x 100 mm Ear Mount Din Rail Mount 50 x 50 mm Din Rail Clip EXPANSION SLOT: 1x M.2 2242/2280 M Key slot support SATA I/F 1x M.2 2230 E Key for WiFi or 3042 B Key for 4G (when you adopt 1x M.2 2242 storage) OS SUPPORT:Windows 10/11 IoT Enterprise 64bit O.S Linux NET WEIGHT: 0.7KG OPERATING TEMPERATURE 0℃~40℃(SPCEL12)-20℃~60℃(SPCEL13) RELATIVE HUMIDITY: 10% - 90% RH (non-condensing) EMC CE, FCC, VCCI, BSMI, RCM, UKCA SAFETY cTUVus, CB, CEC, BSMI, UKCA WLAN: 1 x M.2 2230 E key ( Option ) Intel WiFi Module ( 802.11 a/b/g/n/ac ) + BT 5.0 Realtek RTL8821CE ( 802.11 a/b/g/n/ac ) + BT 5.0 External antenna ( Dipole )
